Hand-held Raman Analyser RaPort

21 CFR part 11

• 532nm Diode Laser, laser power 30 mW

• Spectral Resolution: 7 cm-1 RaPort

• Spectral Range: 100 cm-1 – 4000 cm-1

• Pixel number: 3648 • Pixel size: 8 µm x 200 µм

• Focal length: 50 mm

• Grating: 1800 g/mm holographic grating (1200 g/ mm optionally)

• EnSpectr PRO® Software (Windows OS)

• Power Adaptor: 100 – 240 VAC, 50 –60 Hz

• Weight: =2,2kg

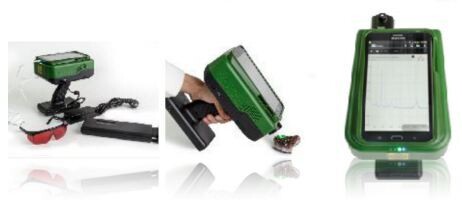

RaPort – Handheld Raman Analyzer Bringing qualities of laboratory analysis into field applications, RaPort by EnSpectr secures precise material identification with utmost mobility. RaPort enables real-time and accurate identification of various chemical substances and compounds by analyzing its unique Raman spectrum of molecular vibrations. Analysis can be done by direct contact with material of through transparent or semitransparent packaging. Fully portable device, lightweight, supplied with in-build battery and wireless data transfer, easily acquires spectra of various chemicals and materials. Have RaPort with your Android or Windows tablet / smartphone and enjoy the simplicity of analysis with EnSpectr mobile software. Create your own database, work with spectra, and manage measurement options within one user-friendly interface. Identify pieces of substance at the concentration as low as 1% due to unique algorithm of recognition and quality of measurements. Features:

• Real-time in-situ identification

• Non-destructive detection

• Detected substances: liquids, powders, gels, solids

• Detection through transparent / semitransparent package (glass, plastic)

• Qualitative and quantitative analysis of substances and mixtures

• Up to 7 hours of continuous autonomous operation

• Independent power supply and line supply

• Data transmission via Bluetooth connection

• Android and Windows software

• Large database can be complemented by user

• 3 sec per measurement and recognition

• Time to start operation mode – 1- 3 min

• Weight ~2 kg (without tablet / smartphone)

• No radiation or X-Ray sources

Delivery Pack

• RaPort Handheld Raman Analyser

• Power Adaptor

• USB wire

• EnSpectr PRO Software Windows and Android

• Manual

• 2 batteries

• battery charger

• optical googles

• memory stick

• Leak and shock-resistant suit-case
